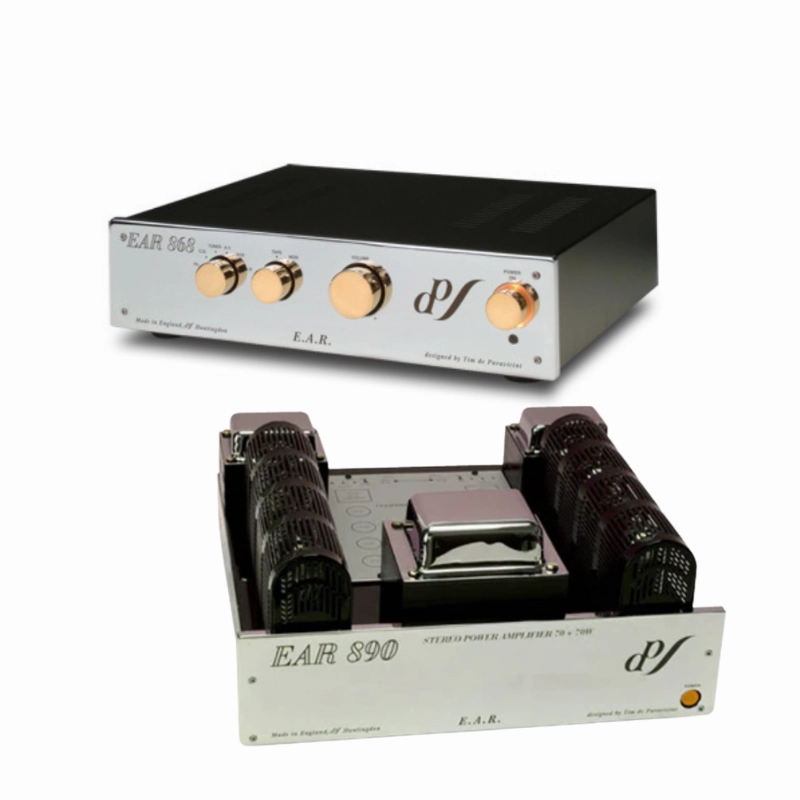

EAR 868 preamplifier & EAR 890 power amplifier | Bundle hi-fi analog preamp,hi-fi dynamic range audio,hi-fi stereo for TV

EAR 868 preamplifier & EAR 890 power amplifier | Bundle

$ 37.85

$ 151.41

Unavailable
EAR 868 preamplifier & EAR 890 power amplifier | Bundle hi-fi analog preamp,hi-fi dynamic range audio,hi-fi stereo for TV

EAR 868 preamplifier & EAR 890 power amplifier | Bundle

$ 37.85

$ 151.41

Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

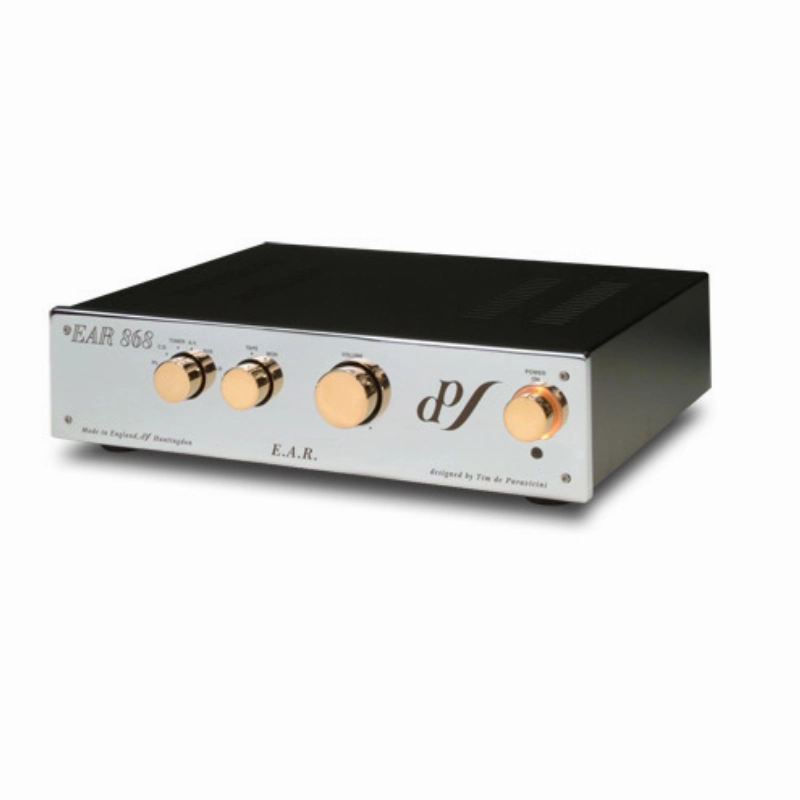

EAR 868 Pre-Amplifier | Pre-Owned

The EAR 868 is a high-performance tube preamplifier designed by Tim de Paravicini under Esoteric Audio Research (EAR). Drawing inspiration from the flagship EAR 912, the 868 offers a more compact form factor without compromising on sound quality. It features a fully balanced, transformer-coupled design, providing both balanced and unbalanced connections at input and output.

The 868 is available in two versions:

  • EAR 868L: Line-stage only, utilizing two PCC88 (7DJ8) tubes.

  • EAR 868PL: Includes a built-in phono stage with support for both Moving Magnet (MM) and Moving Coil (MC) cartridges.

The preamplifier boasts five analog RCA inputs, one balanced XLR input, and a phono input (in the 868PL version). It also offers two line outputs (RCA), two balanced outputs (XLR), and a tape monitor output. The unit is equipped with a built-in power supply, eliminating the need for an external power brick, and is designed to minimize hum and noise.

Crafted with precision, the 868 features a 10mm thick CNC-milled chrome fascia and is hand-finished to ensure durability and aesthetic appeal. The transformers are hand-wound to exacting specifications, contributing to the preamplifier's exceptional sound quality.

Specifications

  • Valve Complement:

    • EAR 868L: 2 PCC88 (7DJ8)

    • EAR 868PL: 4 PCC88 (7DJ8)

  • Inputs:

    • 5 RCA line-level inputs

    • 1 Balanced XLR input

    • 1 Phono input (RCA)

  • Outputs:

    • 2 RCA line outputs

    • 2 Balanced XLR outputs

    • 1 Tape monitor output

  • Phono Stage (868PL only):

    • Moving Magnet (MM) impedance: 47k

    • Moving Coil (MC) impedance: 4, 12, 40 (selectable via DIP switch)

    • Phono noise (weighted): -80dB (IHF)

  • Performance:

    • Signal-to-noise ratio (Line amp): 90dB (1V out reference)

    • Maximum output: 5V into 600

  • Power Supply:

    • Built-in power supply (no external power brick)

    • Power consumption: 24W max

  • Dimensions & Weight:

    • Weight: 10 kg (22 lb)

    • Length: 380 mm (15)

    • Width: 305 mm (12)

    • Height: 100 mm (4)

  • Finish:

    • 10mm thick CNC-milled chrome fascia

    • Hand-finished for durability and aesthetic appeal

EAR 890 Power Amplifier | Pre-Owned

The EAR 890 is a high-performance tube power amplifier designed by Tim de Paravicini under Esoteric Audio Research (EAR). Building upon the circuits of the renowned EAR 834 integrated amplifier, the 890 delivers 70 watts per channel in pure Class-A operation, utilizing eight KT90 output tubes in a parallel push-pull configuration. This design ensures sustained high-power operation with remarkable reliability.

The amplifier features both balanced (transformer-coupled) and unbalanced inputs, offering versatility to accommodate various audio sources. Separate level controls for each channel and the option for flexible mono-block operationdelivering 140 watts into a wide range of loudspeaker loadsenhance its adaptability.

Crafted with precision, the EAR 890 boasts a thick brass front panel, heavily chromed and polished to a mirror finish, reflecting EAR's commitment to luxury and durability. The amplifier's build quality and finish are to EAR's usual high standards, ensuring both aesthetic appeal and long-term reliability.

Musically, the EAR 890 excels in delivering beautifully natural midrange and treble, superb stereo imaging, and extended yet perfectly proportioned bass. This amplifier is designed for audiophiles seeking a blend of power and sonic finesse, capable of driving demanding loudspeakers with ease.

Specifications

  • Type: Stereo tube power amplifier (bridgeable to mono)

  • Output Power:

    • 70W per channel into 8 or 16

    • 140W in mono-block configuration

  • Valve Complement:

    • Two 6AQ8

    • Two 12AX7

    • Eight KT90

  • Frequency Response: 15Hz40kHz at less than 3.0% THD

  • Input Impedance: 55k (unbalanced or balanced)

  • Input Sensitivity: 1.0V

  • Signal-to-Noise Ratio: 92dB

  • Inputs:

    • Balanced (transformer-coupled)

    • Unbalanced

  • Outputs:

    • Separate level controls for each channel

    • Mono-block operation capability

  • Dimensions:

    • Width: 16"

    • Height: 7"

    • Depth: 16"

  • Weight: 60 lbs

  • Finish: Chrome with polished brass front panel
