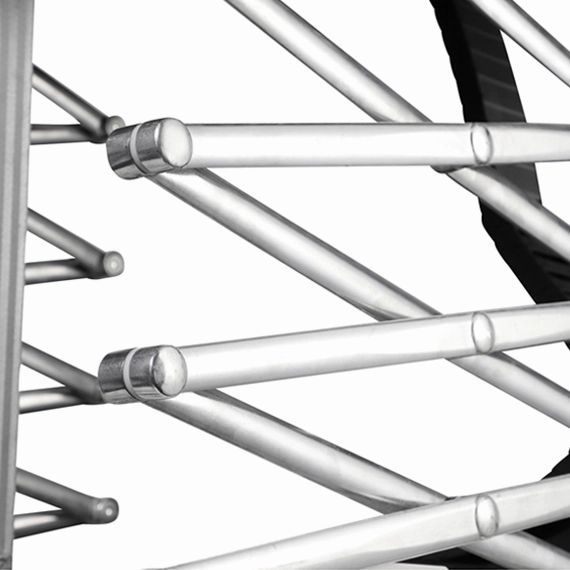

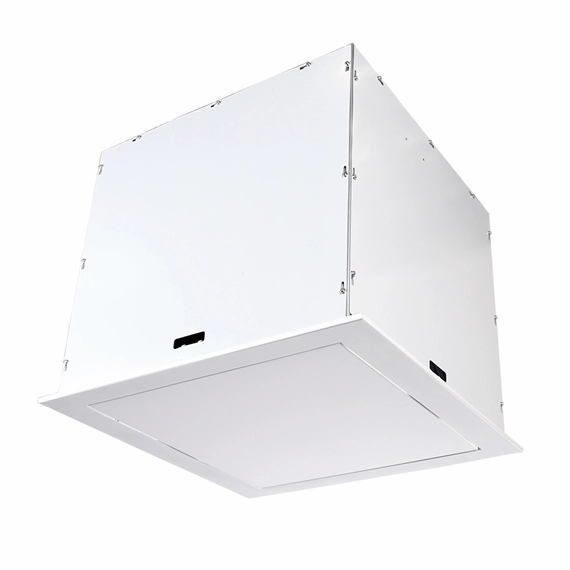

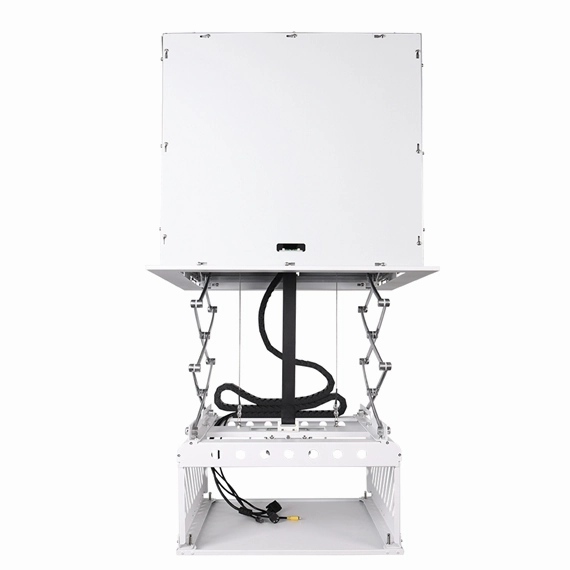

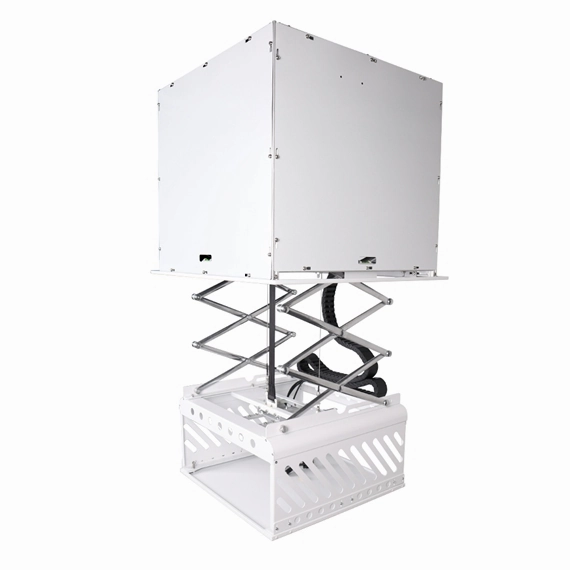

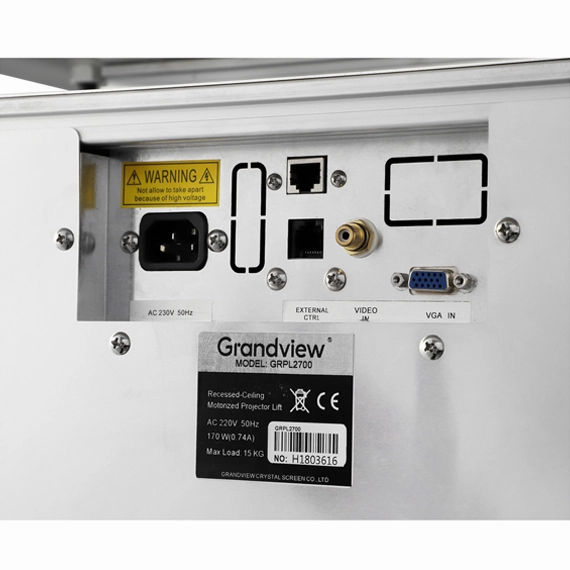

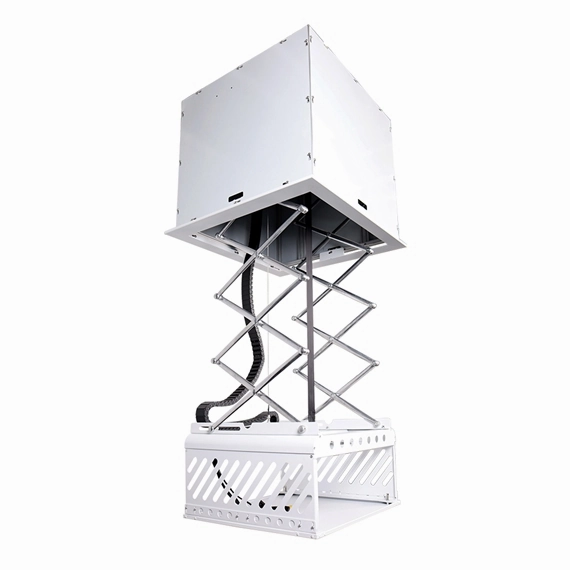

GPCK-MA is a ceiling recessed projector electric lift featuring the aesthetics of architectural engineering that can seamlessly be integrated with its surrounding environment, equipped with diecast aluminium alloy structured rod, which reduces its noise when lifting, allowing the mount to fit most projectors. Applicable scenes: widely used in small and medium-sized conference rooms. training rooms, multimedia classrooms and other places.
Product Specs for: GPCK-MA 4600L
| Product Dimensions (mm) | 765 800 800 |
| Max Projector Dimensions (with wire and lens) (mm) | 590 210 585 |
| Ceiling Opening Dimensions (mm) | 780 770 |
| Package Total Product Weight (kg) | 65 |
| Packing Dimensions (D W H) mm | 885 880 880 |
GPCK-MA 2700L
| Specification | Details |
|---|
| Product Dimensions (mm) | 770 704 685 |
| Net Weight (kg) | 52.4 |
| Max Projector Dimensions (with wire and lens) (mm) | 490 210 585 |
| Max Load (kg) | 15 |
| Power (W) | 170 |
| Max Travel (mm) | 2700 |
| Noise (dB) | 45 dB |
| Voltage (V) | 220V / 110V |
| Ceiling Opening Dimensions (mm) | 684 775 |
| Package Total Product Weight (kg) | 57.4 |
| Packing Dimensions (D W H) mm | 780 760 850 |
GPCK-MA 1600L
| Specification | Details |
|---|
| Product Dimensions (mm) | 770 704 600 |
| Net Weight (kg) | 48 |
| Max Projector Dimensions (with wire and lens) (mm) | 490 210 585 |
| Max Load (kg) | 15 |
| Power (W) | 170 |
| Max Travel (mm) | 1600 |
| Noise (dB) | 45 dB |
| Voltage (V) | 220V / 110V |
| Ceiling Opening Dimensions (mm) | 684 775 |
| Package Total Product Weight (kg) | 53 |
| Packing Dimensions (D W H) mm | 695 760 860 |
