FLOORSTANDING
The ZX Series is the latest in a long line of distinguished and revered Mission loudspeakers and joins more recent Award-winning products. The ZX series represents the most technologically advanced loudspeakers in the Mission family, with a distinct ID that will complement the finest electronics and dcor.
Mission ZX incorporates purpose designed bass driver cones, precision engineered motor systems, advanced treble units and more.
GENERAL DESCRIPTION

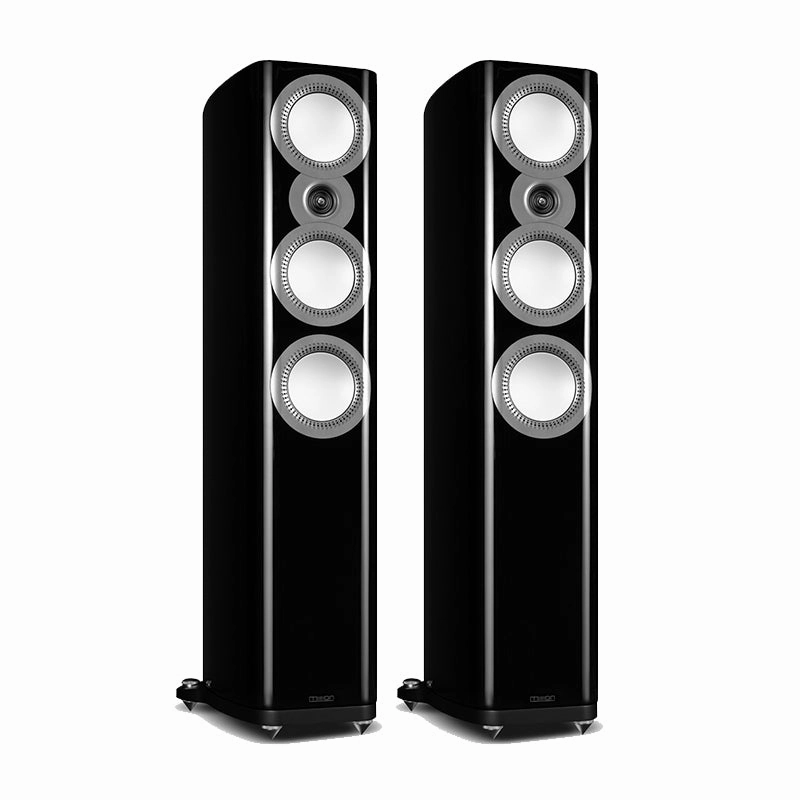

3-way floorstanding speaker
Enclosure Type Bass reflex
Transducer Complement 3-way
Bass Driver 5.25" 130mm aluminium cone x2
Midrange Driver 5.25" 130mm aluminium cone
Treble Driver 1.5" 38mm ring dome
AV Shield No
Sensitivity 2.0V @ 1m 90dB
Recommended Amplifier Power 25-150W
Peak SPL 110dB
Nominal Impedance 4 8 compatible
Minimum Impedance 3.4
Frequency Response /-3dB 40Hz ~ 24kHz
Bass Extension-6dB 35Hz
Crossover Frequency 530Hz,2.7kHz
Dimensions HxWxD 1075 * 240 * 350 12mm
Net Weight 24.6kg/pcs
