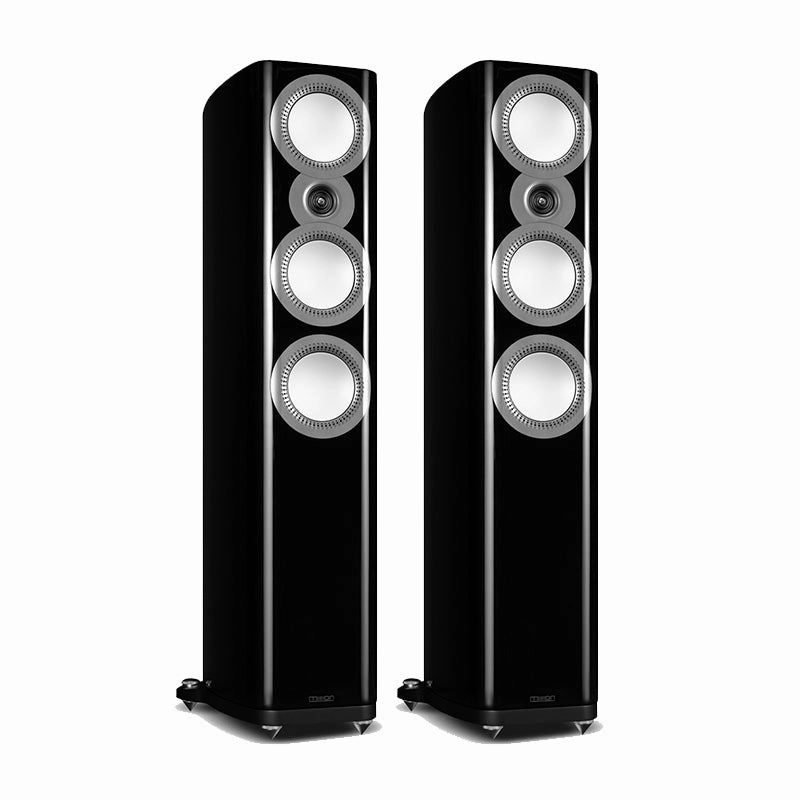

FLOORSTANDING
The ZX Series is the latest in a long line of distinguished and revered Mission loudspeakers and joins more recent Award-winning products. The ZX series represents the most technologically advanced loudspeakers in the Mission family, with a distinct ID that will complement the finest electronics and dcor.
Mission ZX incorporates purpose designed bass driver cones, precision engineered motor systems, advanced treble units and more.
GENERAL DESCRIPTION
3-way floorstanding speaker
Enclosure Type C Bass reflex
Transducer Complement C 3-way
Bass Driver C 5.25" 130mm aluminium cone x2
Midrange Driver C 5.25" 130mm aluminium cone
Treble Driver C 1.5" 38mm ring dome
AV Shield C No
Sensitivity 2.0V @ 1m C 90dB
Recommended Amplifier Power C 25-150W
Peak SPL C 110dB
Nominal Impedance C 4 8 compatible
Minimum Impedance C 3.4
Frequency Response /-3dB C 40Hz ~ 24kHz
Bass Extension-6dB C 35Hz
Crossover Frequency C 530Hz,2.7kHz
Dimensions HxWxD C 1075 * 240 * 350 12mm
Net Weight C 24.6kg/pcs
