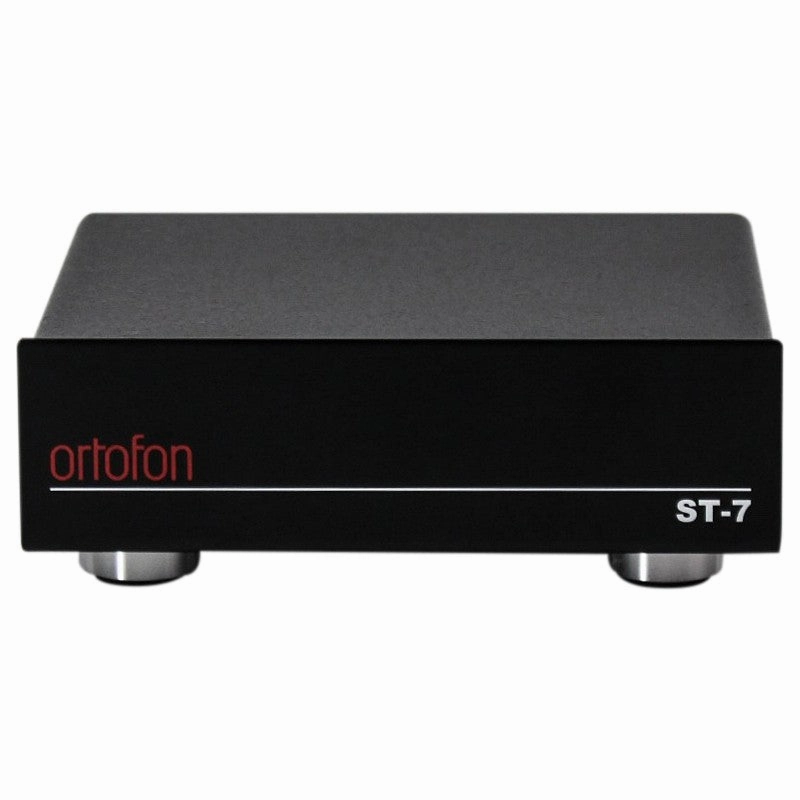

Compact and stylish, the ST-7 has a solid housing supported by four rubber feet, which helps to reduce unwanted vibrations in the unit.

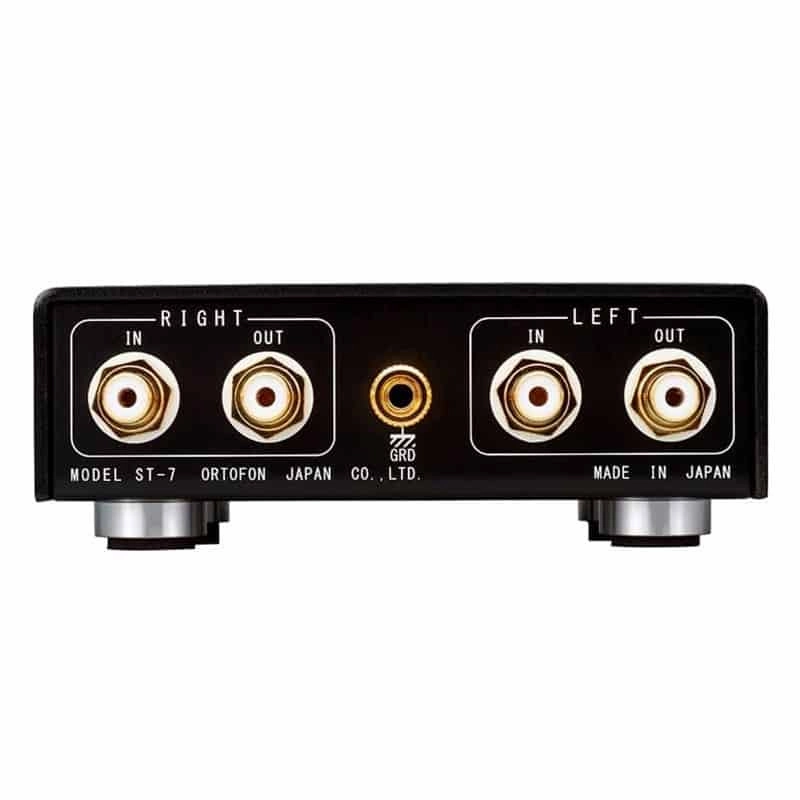

High-quality internal wires together with high-quality gold plated terminals provide the optimum signal transmission. The sandwich winding structure, used in the ST-7, significantly improves the high-frequency response and provides a very clear and open sound over the whole frequency range.
Additionally, the dual-mono design, including the individual shielding of the two channels, improves the imaging of the transformer and reduces the influence of environmental noise.
The ST-7 transformer will be a perfect match for, among other MC cartridges, the , the , and .
SPECIFICATIONS
- Frequency response: 15-45 kHz ( 0 dB -2,5 dB)
- Gain: 24 dB at 1 kHz
- Recommended cartridge impedance: 2 - 60
- Recommended load: 47 k // 200 pF
- Dimensions: 122 mm(W) 43,5 mm(H) 102 mm(D)
- Weight: 790 g
