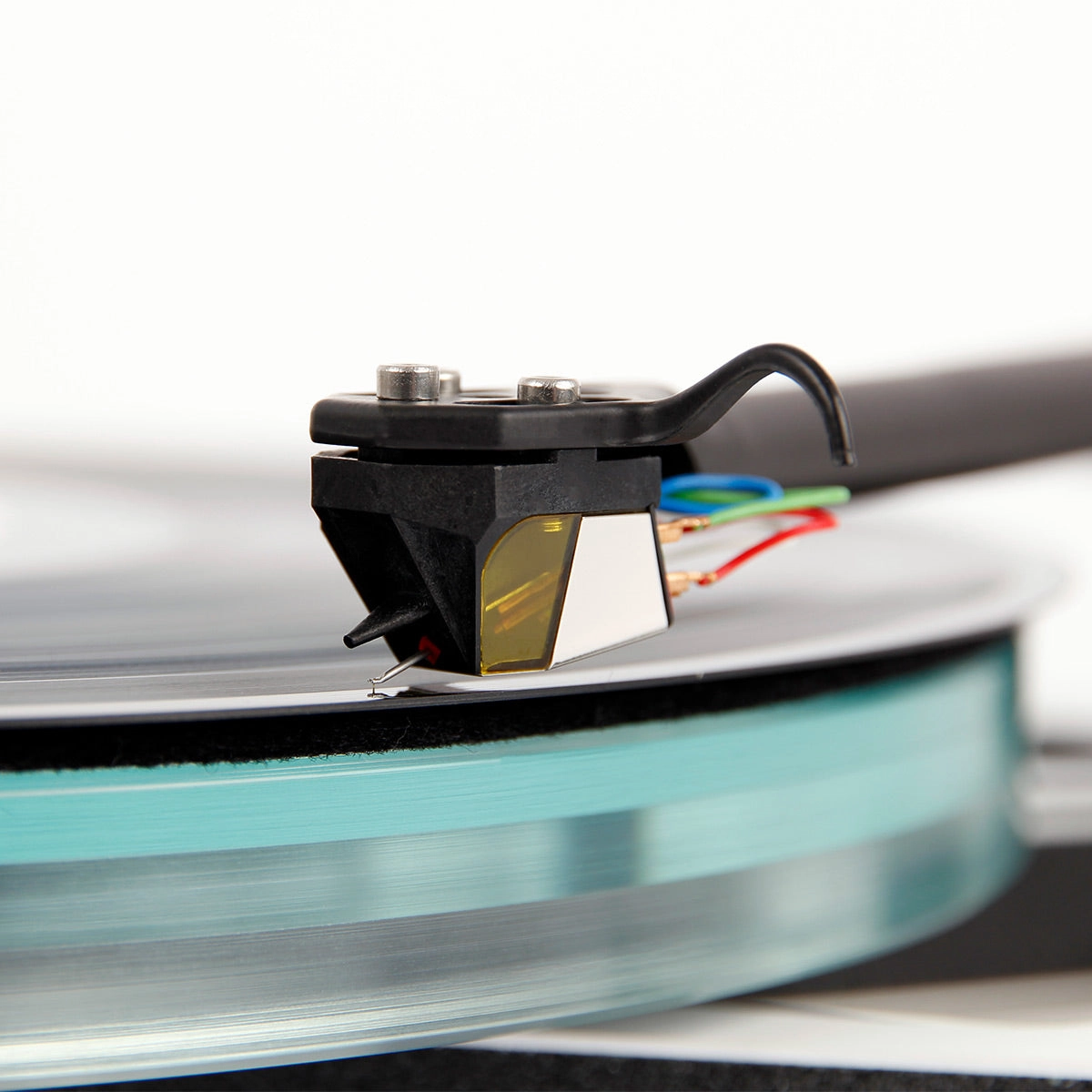

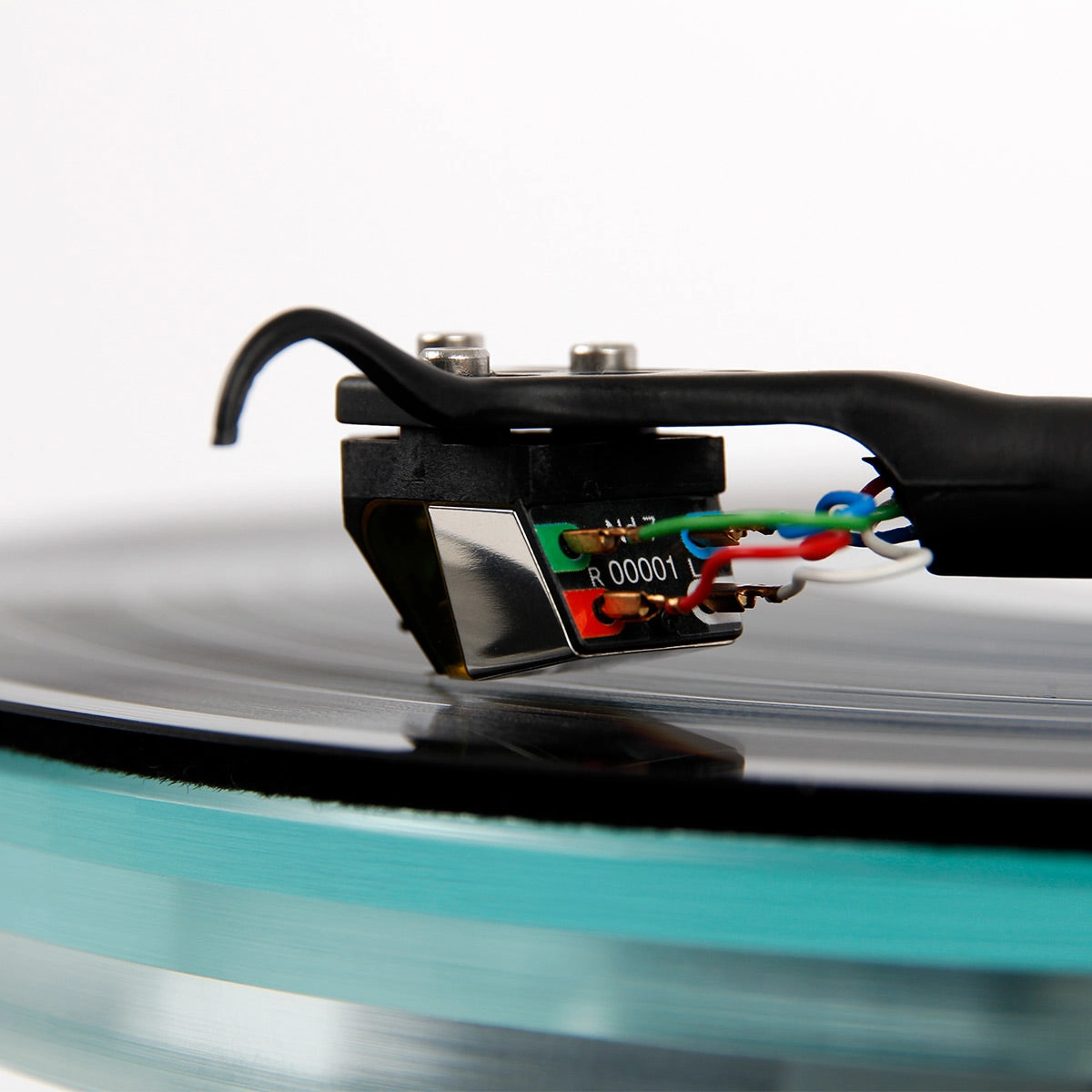

The all new Nd7 moving magnet cartridge was developed over 10 years and promises to deliver next level performance from moving magnet technology. The Nd range (patent pending) is a world first to use ultra-high powered Neodymium magnets in a moving magnet design which allows Rega to create this totally unique design.
Features
- Fine Line Nude Diamond Profile
- Aluminum Cantilever
- Neodymium Magnet
- Unique Generator
- Rega 3-Point Mounting System
- Highly Rigid Lightweight PPS Body
- Handmade Stereo Cartridge
Next Level Moving Magnet
Each Nd7 is meticulously hand-made by Regas highly skilled technicians. The Nd7 uses Regas most advanced fine line nude diamond profile for the ultimate in detail retrieval. (The same profile is used on Regas high-end MC models the Apheta 3 and Aphelion 2). This profile has an exceptionally small radii Monocrystalline manmade diamond with the minor radius being just 3m (microns) as viewed from the top and 30m in the vertical when viewed from the front. This profile allows immediate adjustment to very small changes in the vinyl due to the small contact area of the diamond which results in exceptional levels of detail being retrieved. The design uses brand new generator geometry with perfect symmetry to achieve highly accurate channel balance. The Nd7 also has an optimized pole gap for superior linearity and cross talk characteristics, this provides a far wider soundstage than the previous models. This new cartridge is created with miniaturized parallel coils which are wound in house utilizing 38-micron wire with just 1275 turns. This produces a low inductance, low impedance generator giving vastly improved high frequency response. In keeping with Regas commitment to sustainability, the Nd range is supplied in 100% recyclable packaging.
Nd Magnet Technology
Often used in Moving Coil designs (including Regas own) the Nd7 is the first moving magnet to utilize a Neodymium (Nd) N55 magnet. This is the worlds most powerful commercially available magnet and is a crucial component that makes this unique design possible by delivering extra power than standard bar magnet designs.
Glass Filled PPS Body

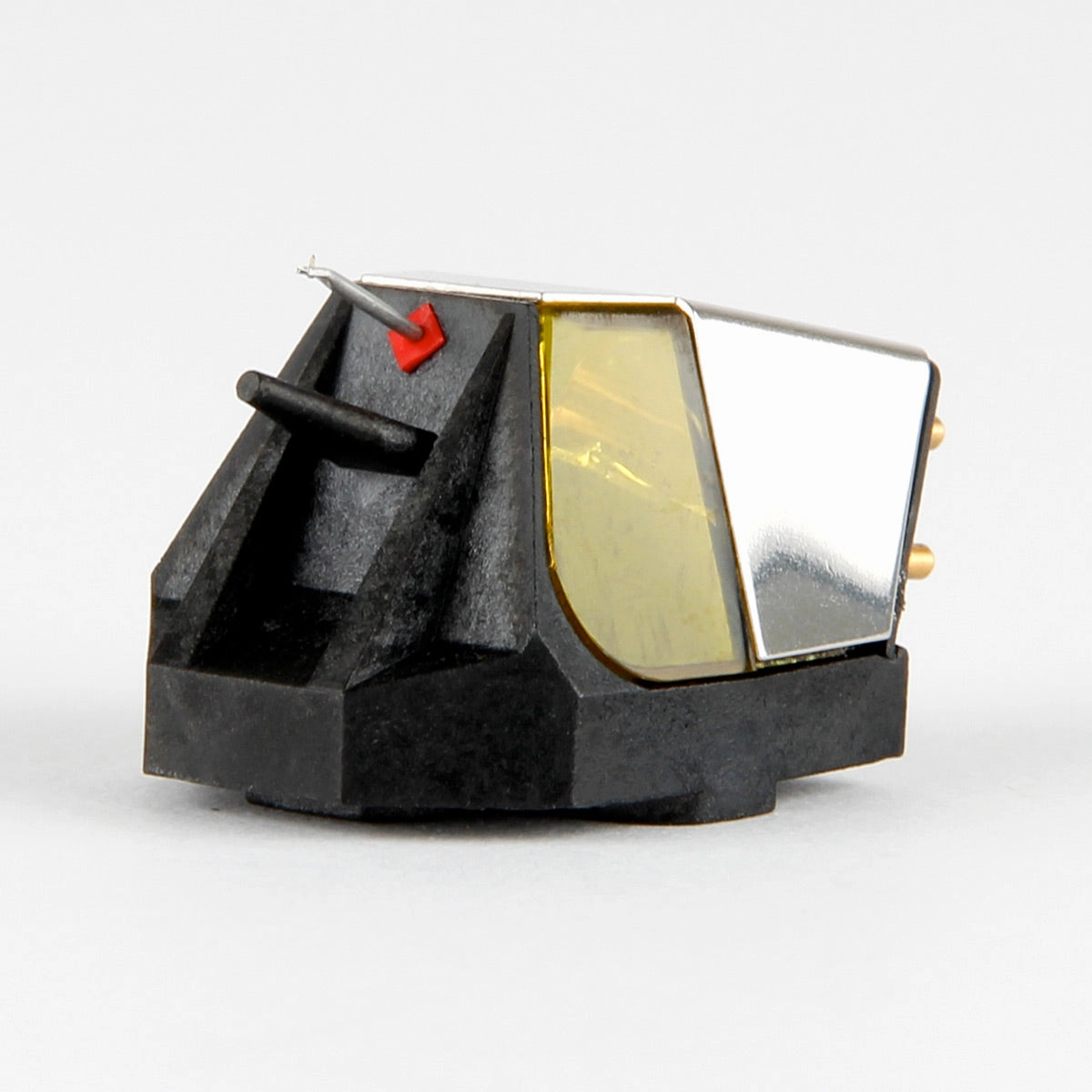

The complete assembly is housed in Regas zero tolerance Injection molded glass filled polyphenylene sulphide body (PPS) which is a lightweight and highly rigid material. A low mass body reduces stress on the tonearm bearings and aids free movement which is critical in accurate vinyl replay. This new body design was inspired by Regas hugely successful MC range.
Cantilever & Stylus Profile
The Nd7 aluminum cantilever is fitted with a precision perfect elliptical nude diamond stylus. This profile provides exceptional tracking accuracy and extracts greater levels of detail from the vinyl surface.
Factory Fitted Options

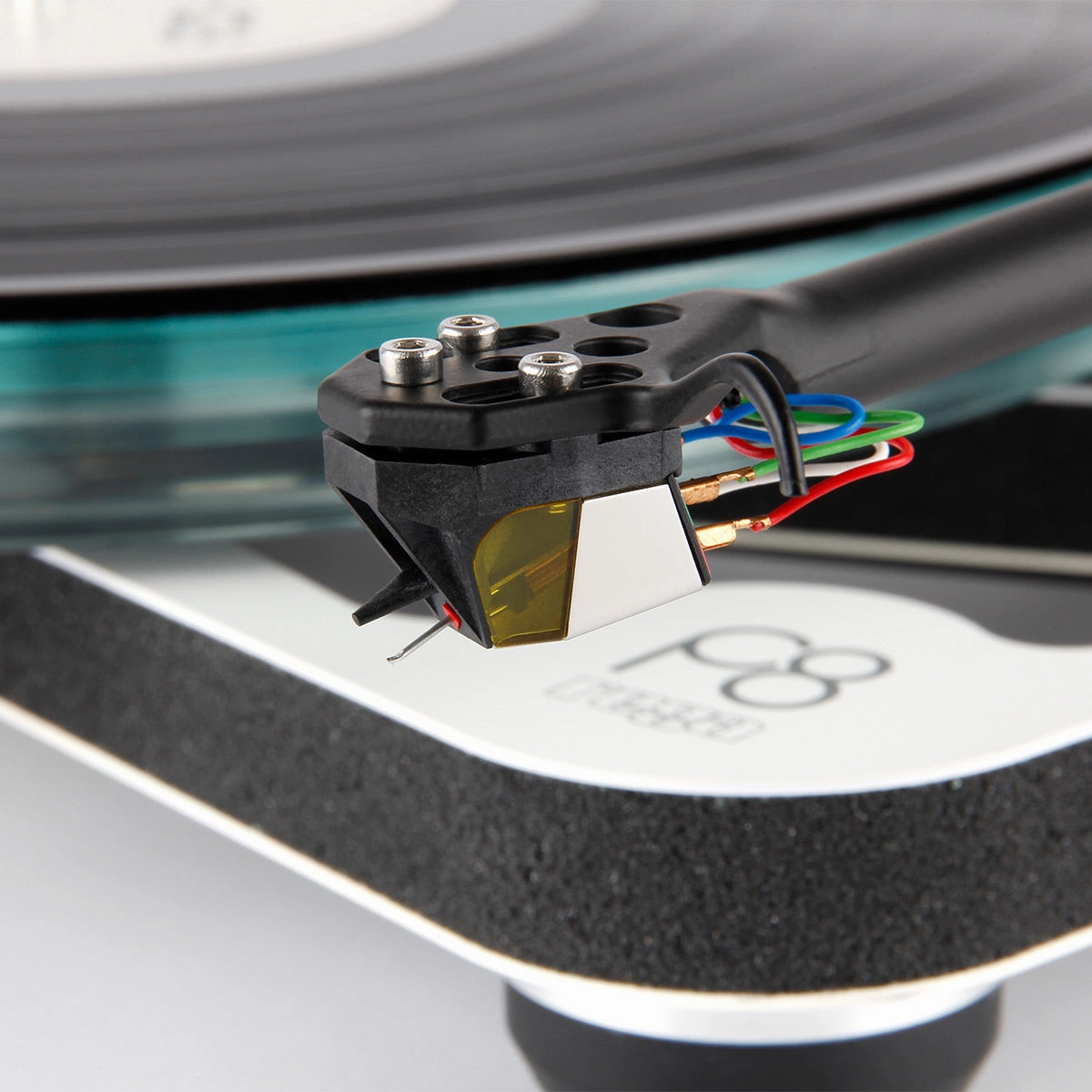

The Nd7 cartridge will be offered as a factory fitted option on the multi award winning Planar 6 and Planar 8 turntable models. Designed specifically with these turntables in mind, the Nd7 promises to extract the very best from your vinyl collection. The factory fitted packages are offered at a discounted rate compared to when purchased separately, ask your Rega dealer for details.
Unique Pivot Pad Design
The unique pivot pad design of Rega cartridges improves performance by eliminating the mechanical joint between the stylus housing and the main body. This vastly improves tracking ability and stability of the stylus.
