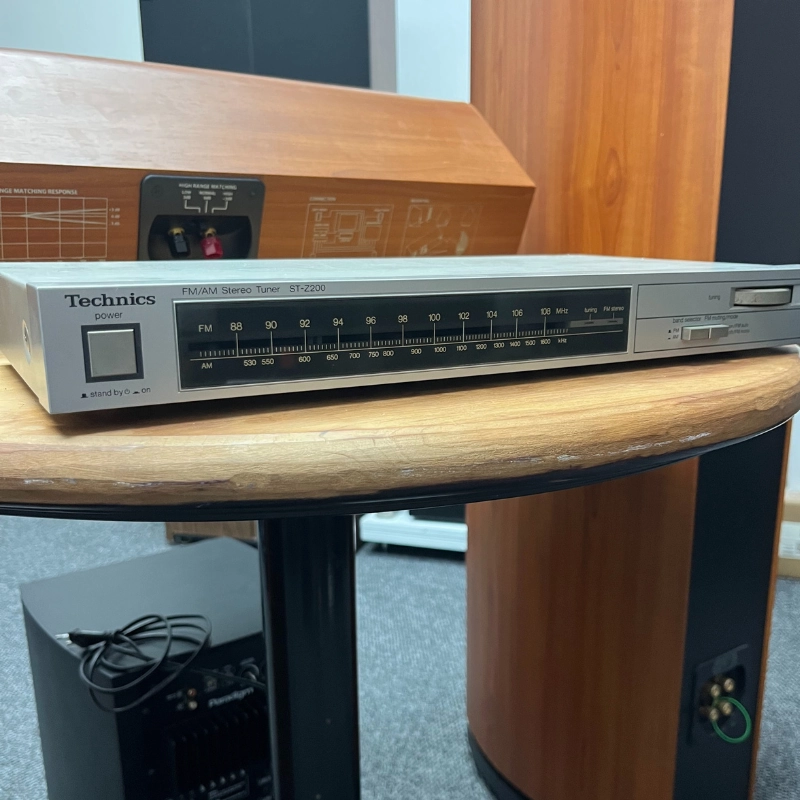

Specifications

Tuning Bands:

• FM: 88 to 108 MHz
• MW (AM): 525 to 1605 kHz
• LW: 145 to 350 kHz

Sensitivity:

• FM: 0.95 V
• MW: 20 V
• LW: 50 V

Signal-to-Noise Ratio (S/N):

• FM: 65 dB

Total Harmonic Distortion (THD):

• FM: 0.3%

Selectivity:

• FM: 65 dB
• MW: 27 dB
• LW: 35 dB

Frequency Response:

• FM: 20 Hz to 15 kHz

Output Level:

• 300 mV

Dimensions:

• Width: 430 mm
• Height: 53 mm
• Depth: 242 mm

Weight:

• 2.4 kg
