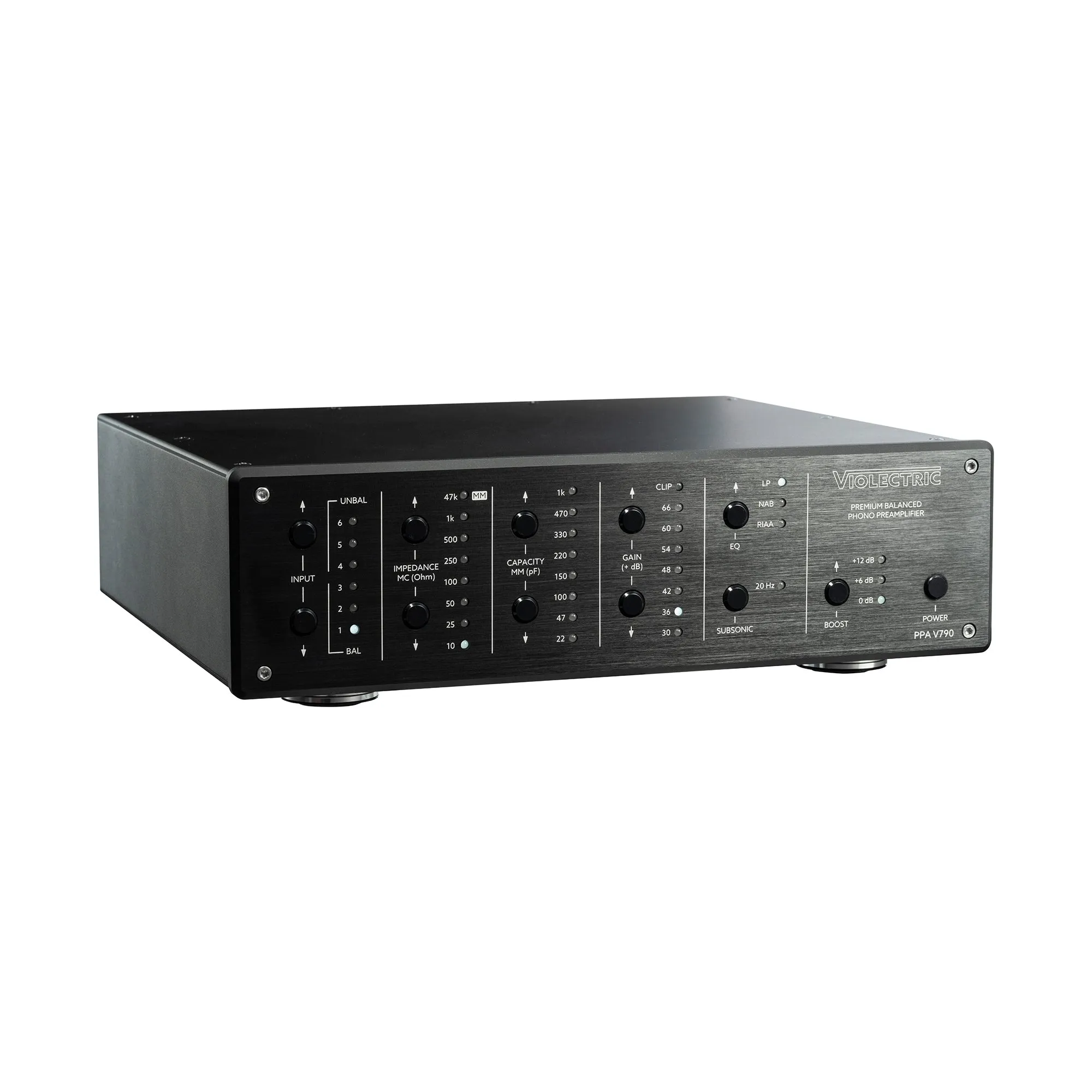

The PPA V790 is a state-of-the-art phono preamplifier which offers a huge variety of adjustments, easily accessible from the front panel and a newly developed extremely low-noise and distortion-less amplifier technology. The PPA V790 features multiple inputs which allows up to six differing cartridges to be managed in only one amplifier which can be individually treated in terms of impedance, capacity, gain and EQ.

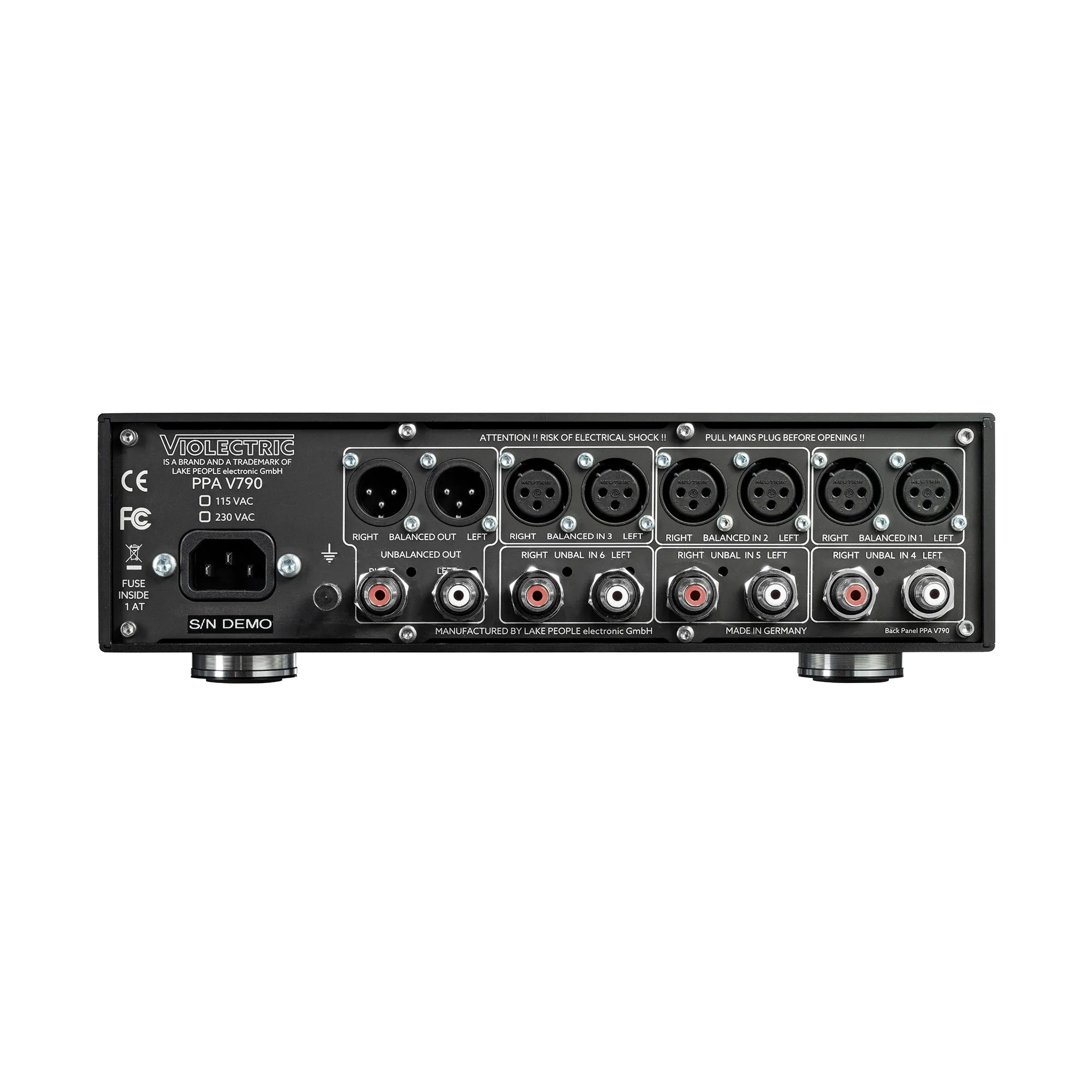

Up to six cartridges (3 x balanced, 3 x unbalanced) may be connected to the PPA V790 at the same time.

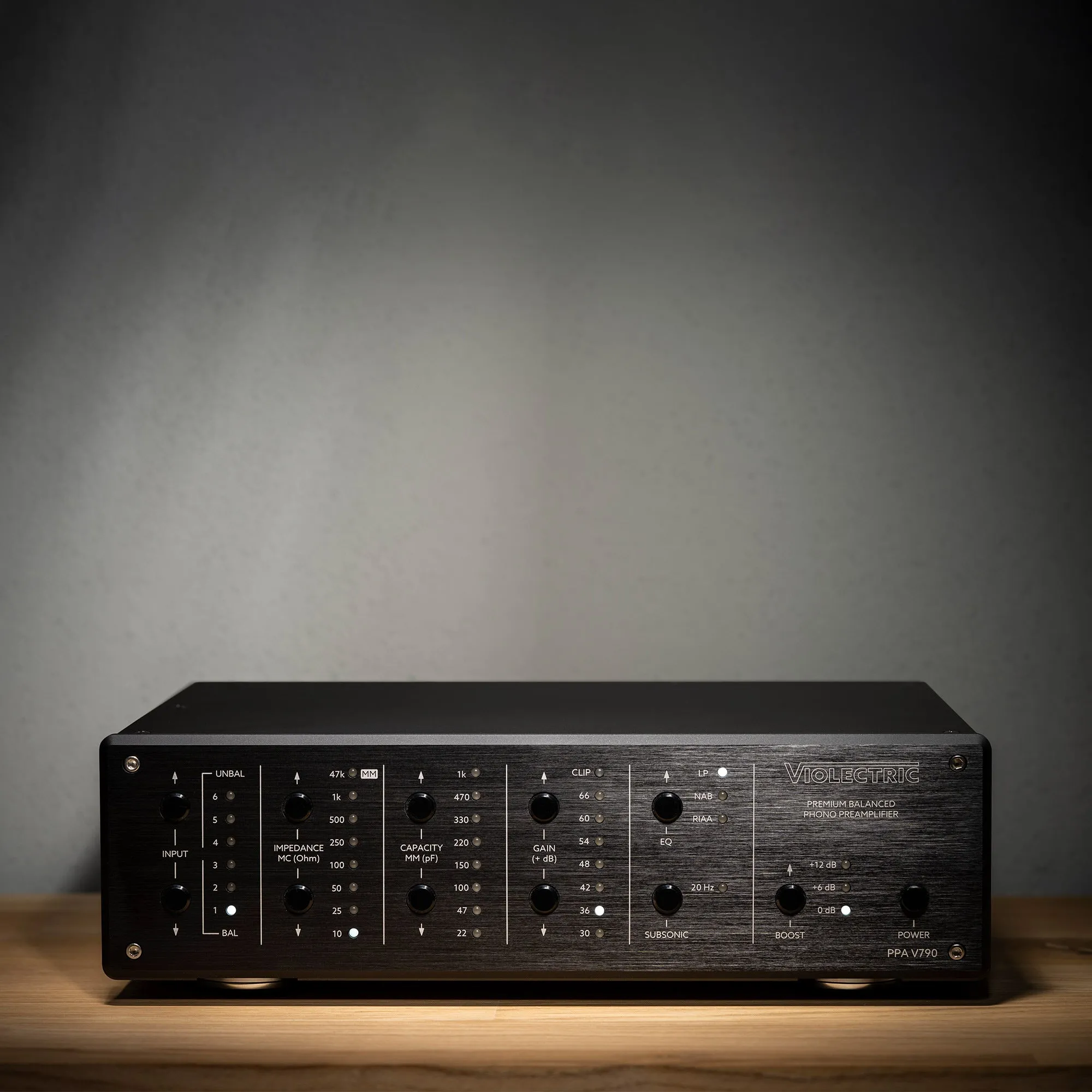

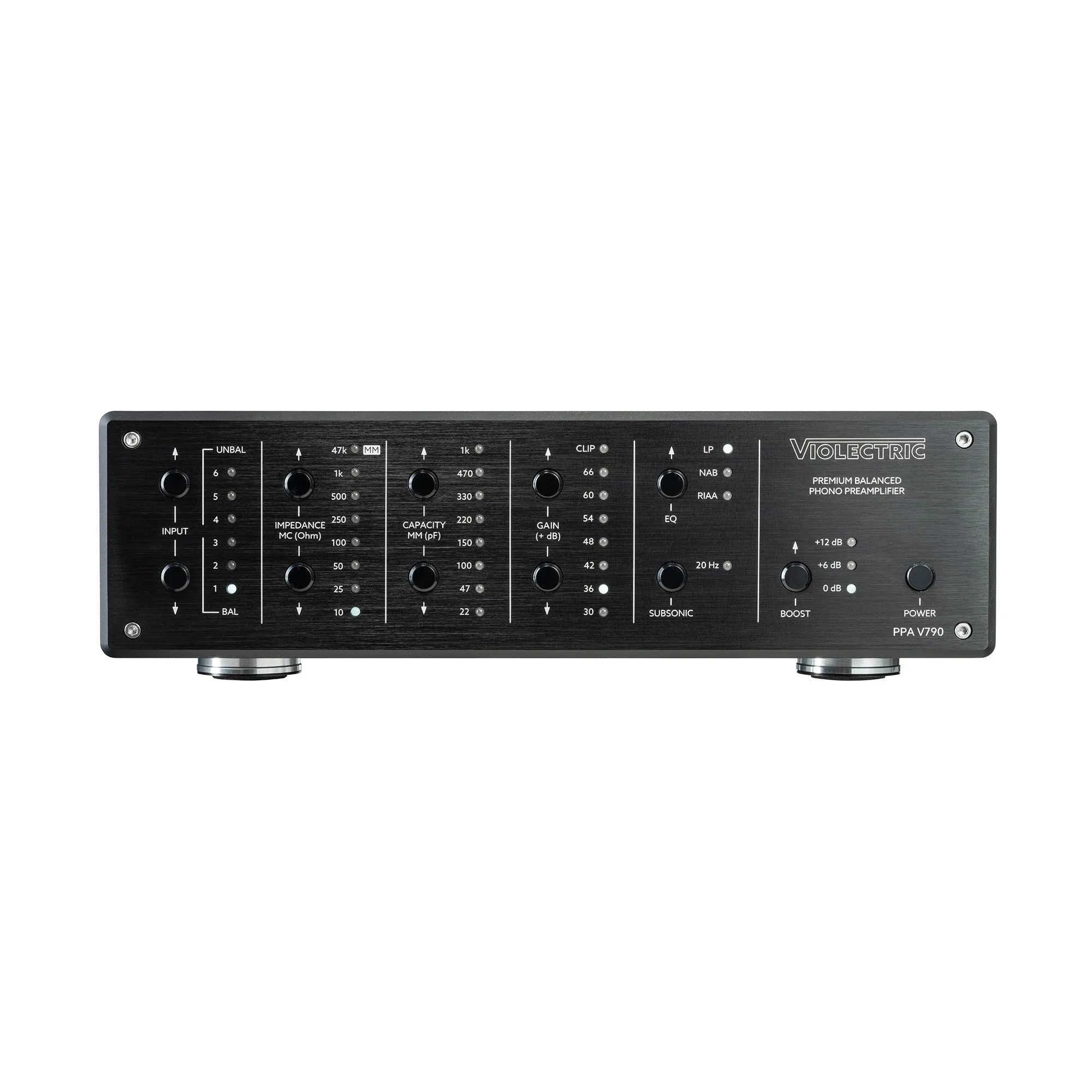

All cartridge settings can be set individually and stored by using the denoted push buttons and displayed by white LEDs on the front panel. The cartridge settings include the input impedance, the input capacity, the EQ law, the subsonic filter and the output boost. The usual distinction between MM and MC-cartridges in such amps was renounced.

Instead, beneath standard cartridges also MC High-Output or MM Low Output can be treated individually by the wide and open gain adjustment from 30 to 66 dB.

The gain stages inside PPA V790 are DC coupled with cascaded bi-polar superfast input transistors for highest bandwidth, extreme low noise, lowest distortions and highest dynamic range. Dont expect any coloration from this amp! Gain may be set in 7 steps from 30 dB (factor 30) to 66 db (factor 2000). A clip indication is in charge to avoid incorrect operation.

PPA V790 offers three DC coupled EQs. Beneath the usual RIAA filter, NAB and Columbia-LP EQs may be selected for exotic recordings. The filter accuracy is 0.1 dB.

A switchable subsonic filter helps to eliminate low frequency interferences.

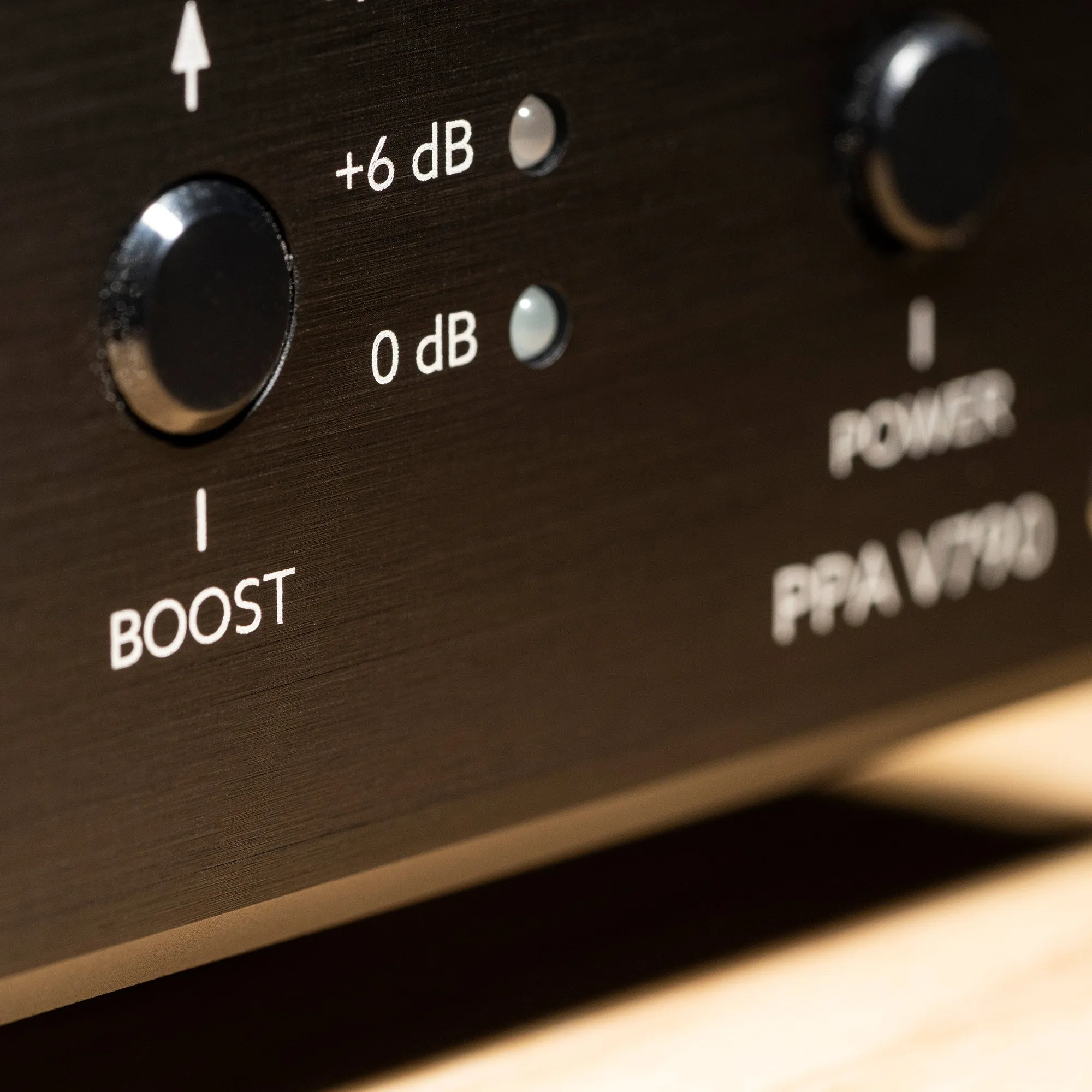

The Boost circuitry with 0, 6 und 12 dB settings is intended to adapt PPA V790 into virtually any signal chain.
