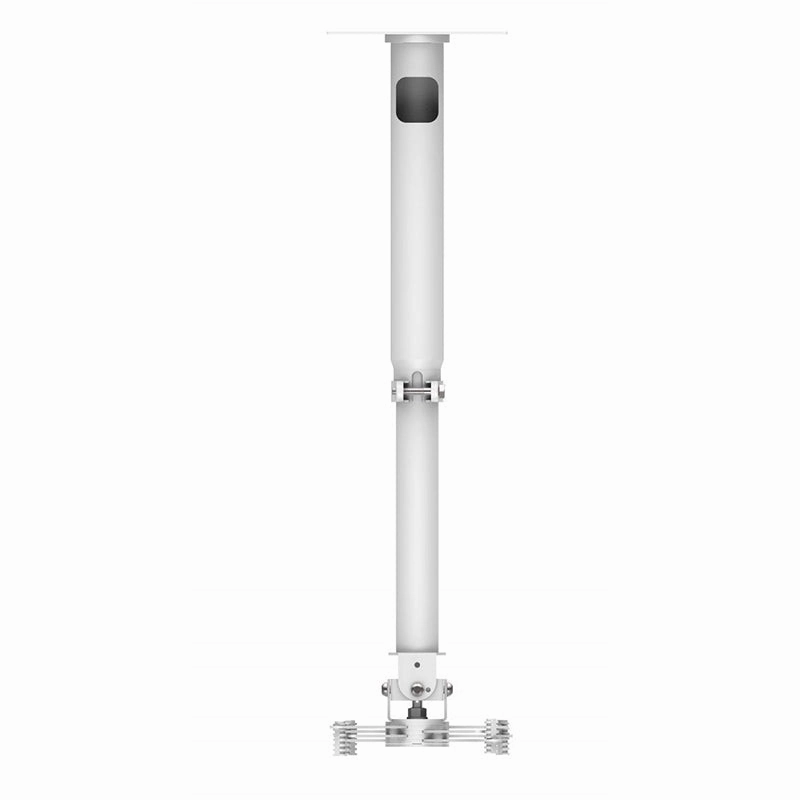

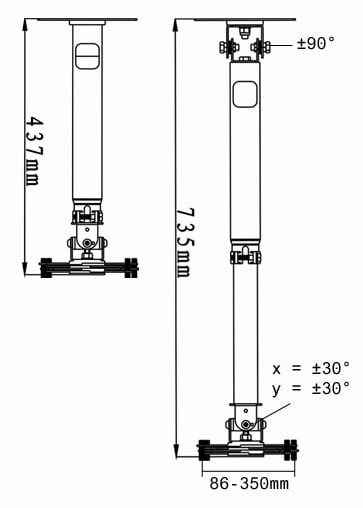

The TM-TELE Techmount is a projector ceiling bracket for anchoring any data projector safely to a ceiling. The telescopic design allows fast deployment and adjustment without the need cut and drill the pole. It has a greater range than most other telescopic mounts and the pole can be removed for flush-mounting the projector as close to the ceiling as possible. Note: unlike the TM-1200 the length of this bracket cannot be extended.

One-Man Installation

Thoughtful design detail include a length adjustment clamp system which requires only one hand.

Sloping Ceilings

A tilting mechanism is included which tilts to a full 90 degrees, allowing you to use the bracket as a boom if need be.

Safety Approved

A back-up fall-arrest tether is included which secures the projector to your bracket, and the pole has a mechanical stop so that the two parts of the pole cannot be separated. Vision recommends a maximum safe working load of 10kg which is well within the limits of the product and meets the BSi installation standard specification (PAS122:2009).

Easy fit

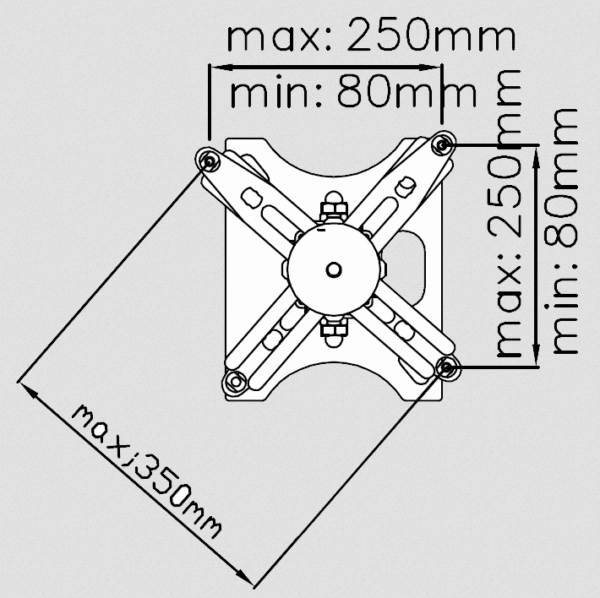

Projectors have threaded inserts in the bottom for attachment but not all use the same diameter screws so Vision includes a selection to suit most projectors. Simply locate the spider arms on our bracket over the attachment holes, and insert a screw into the projector.

Obstruction-free Cable Management

Visions unique chute-through system leaves cable access clear even for big VGA connectors.

Tools Included

A spanner and pin-hex key are included. Vision also includes a hex-key bit for a power drill to speed up installation.
Secure

Quick-release mechanisms make life easier for thieves, so the TM-TELE is secure and features security bolts.

SPECIFICATIONS
